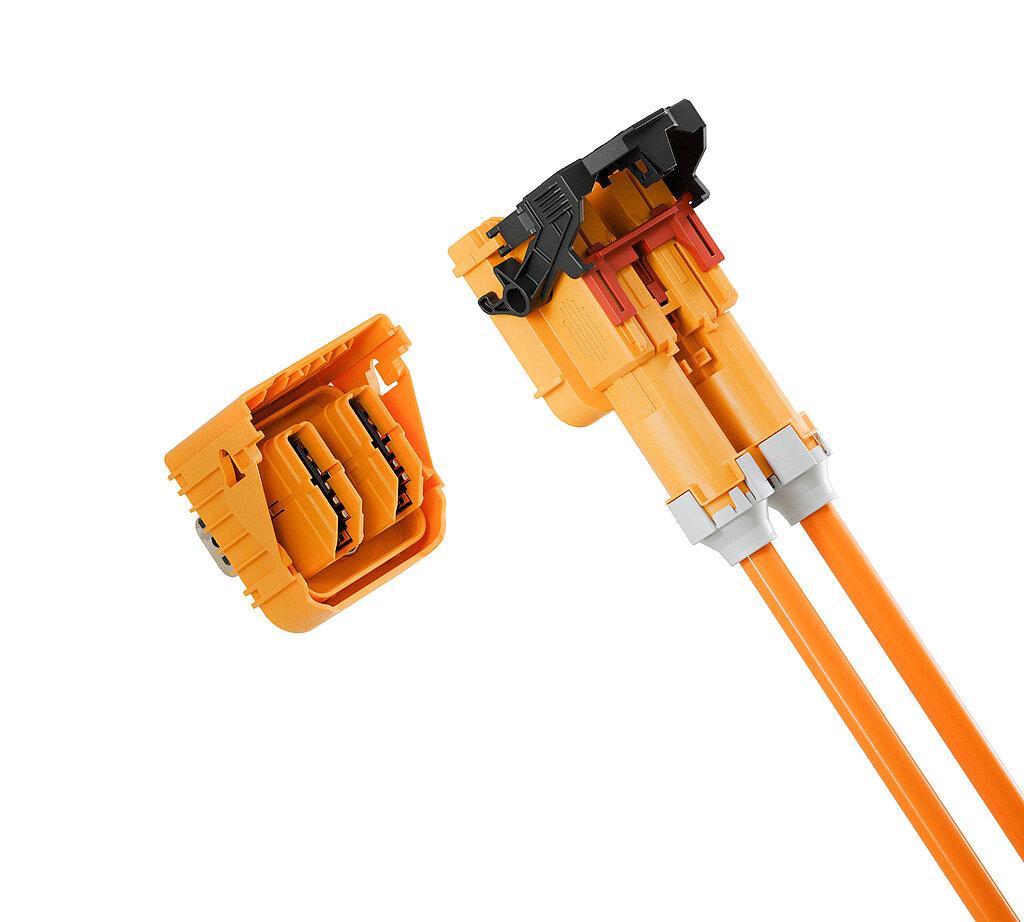

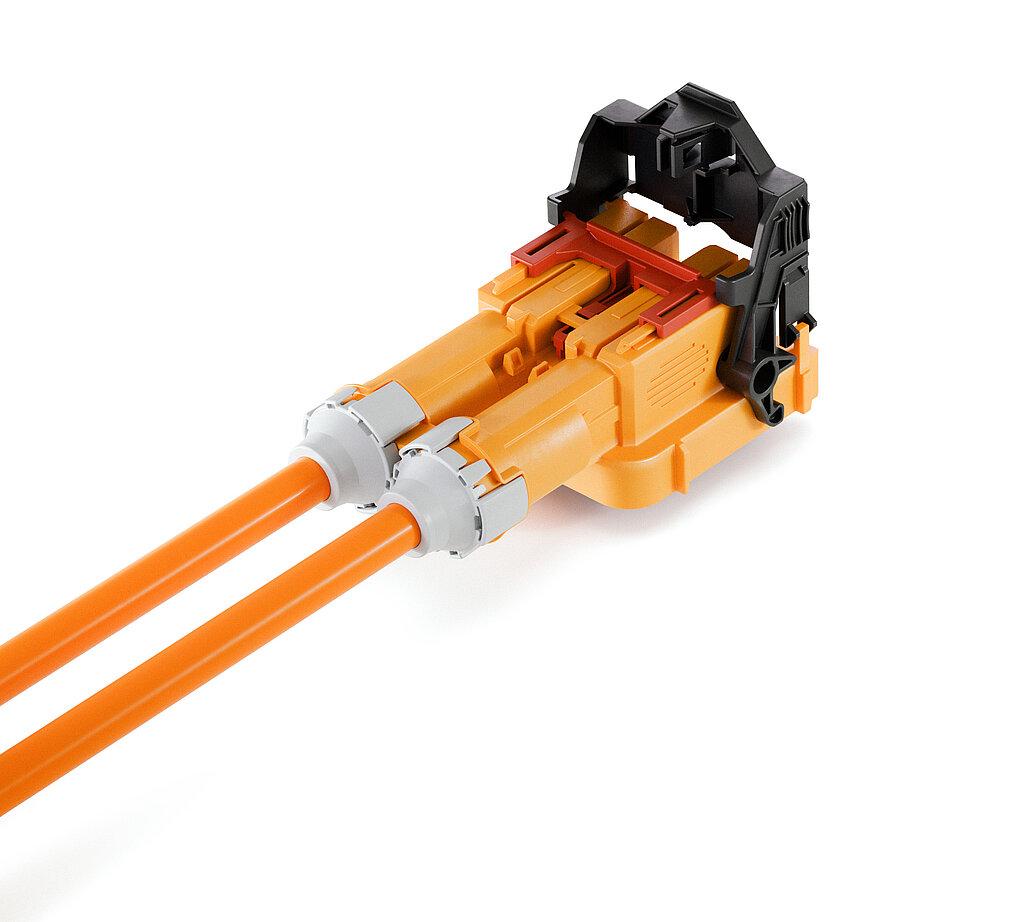

HPS100 2+2
HPS100 2+2 是赫尔思曼汽车技术面向电驱系统应用开发的一款电流等级达到3级的紧凑型高压连接器，适用于逆变器、高压电池、电机以及 DC/DC 转换器等应用。该产品标配两个高压触点和两个高压互锁（HVIL）触点，如应用无需 HVIL，也可选择省略，从而以紧凑的设计实现可靠的高压连接。
HPS100 2+2专为严苛的工作环境而设计，额定电压最高可达1000V DC，适用环境温度范围为 -40°C 至 +125°C，安装海拔最高可达 5600 m。产品具备 IP6K9K / IPX8 防护等级，可选配360° 屏蔽；同时配备具有先断后合功能的高压互锁（HVIL）以及集成式连接器位置保证装置（CPA），确保连接可靠、安全稳定。
符合人体工程学设计的杠杆机构可将插拔力控制在50N以下，同时支持手动、半自动及全自动装配。公端和母端均提供维修解决方案，便于后续维护。此外，还可根据客户的不同应用需求，提供两步式解锁/拔出设计、模块化插座安装、温度检测、防脱螺钉以及工具操作式 CPA 解锁等可选功能。
Daniel Engstler 是您的专属咨询联系人
Global Product Manager HV
- dimension (LxWxH): 117.5×66.5×48 mm
- low shield contact resistance
- ergonomic lever operating concept
- low mating/unmating force < 50 N

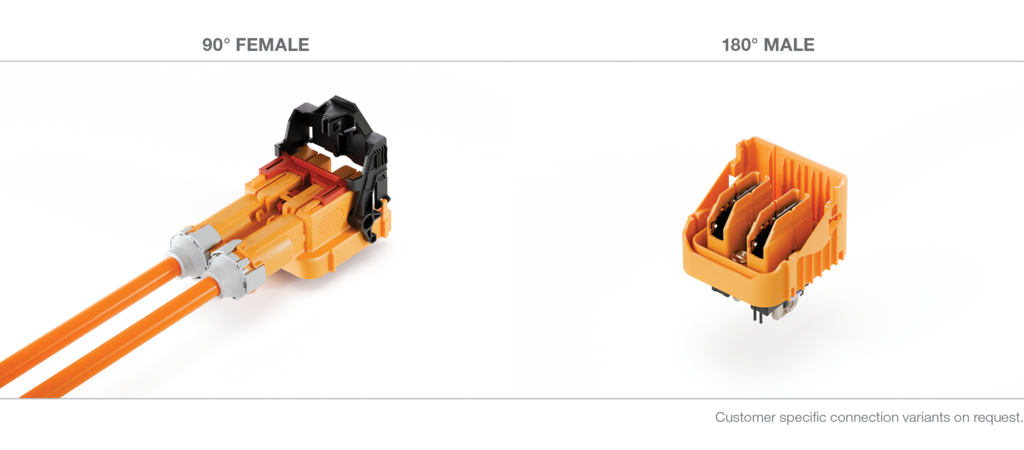

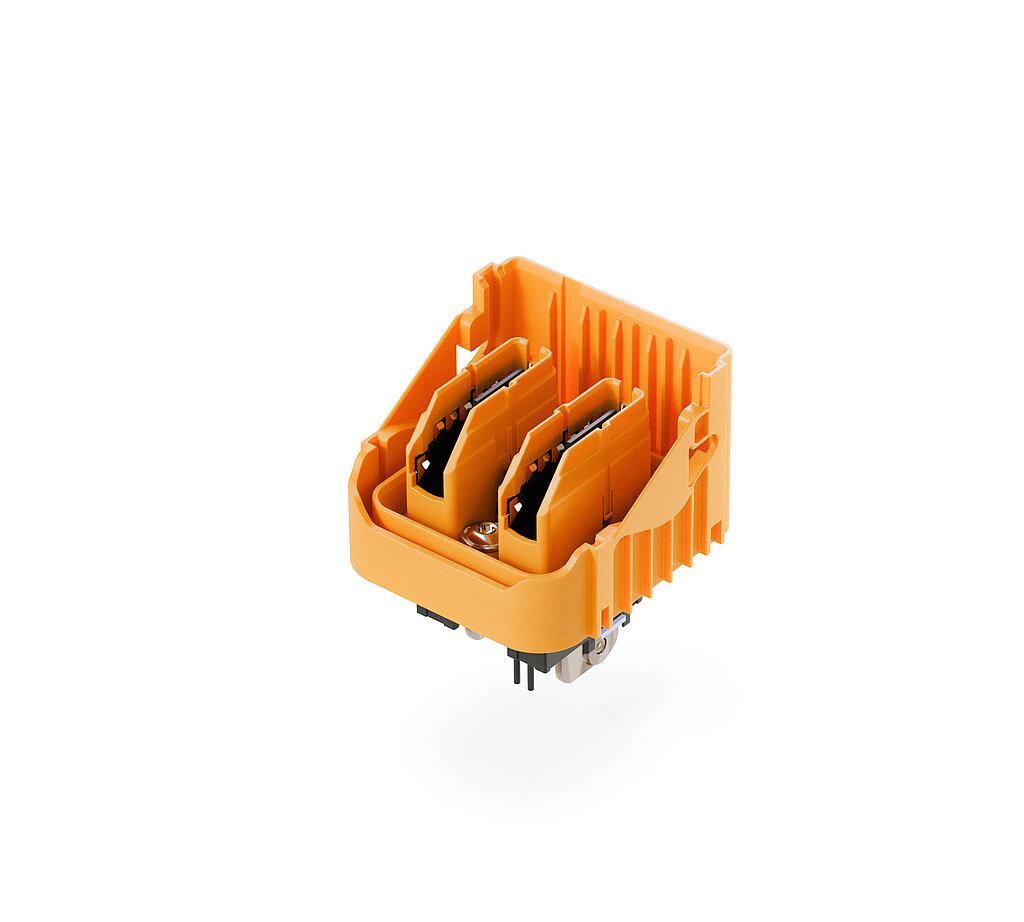

- modular header installation options
- repair solution for male and female housing
- shield braid fixation without tape pre-fixation
- optional two-step connector unplug for added safety
- optional temperature sensor
- optional captive screws, adhesive aggregate seal and CPA version
- fully automated assembly possible
- the HFT14.5 contact system is an in-house development by Hirschmann Automotive
| PARAMETERS | HPS100 2+2 |
| Current Class | current class 3 connector |
| Applications | inverter, HV battery, eMotor, DC/DC converter, ... |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | 1,000 VDC |
| Voltage Class | class B1 according ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VAC (15-150 Hz) |
| Ambient Condition | -40° C to +125° C |
| Maximum Altitude | 5,600 m |
| Maximum Current Load | 119 A at 85° C (16.0 mm²) |
| IP-Degree of Protection | IPXXB+2 UL (unmated), IPXXD (mated) |
| Watertightness | IP6K9K, IPX8 |
| Shielded Area | shielded or unshielded |
| Vibration Strength | class 2 according to TFL 0214/PG17 Tmax +125° C |
| Mating/Unmating Force | < 50 N |
| Secundary Lock System | activating force < 50 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/Coding | incorrect insertion force > 150 N |
| CPA System | operating force < 30 N |
| HVIL System | minimum 1.0 mm (nominal 2.0 mm), leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | HFT14.5 (14.5 mm flat terminal) |
| Material/Surface | Cu-Leg./Ag |
| Connector | crimped/welded |
| Mating Cycles | maximum 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 10 mm²-16 mm² crimped (25 mm²-35 mm² welded) |
| Contact Carrier Codings | A, B, C, D, Z possible |
